Bring Your Own Storage

Bring Your Own Storage (BYOBS) lets you store document files in your own cloud storage bucket instead of Ragnerock’s default storage. Metadata, embeddings, and annotations remain in the database. Only the raw document files are stored in your bucket.

This is useful for organizations that need to meet data sovereignty or compliance requirements (HIPAA, SOC2), integrate with existing cloud infrastructure, or optimize costs through pre-negotiated storage contracts.

Supported Providers

Provider	Identifier	Credentials
Google Cloud Storage	gcs	Service account JSON key
Amazon S3	s3	Access key ID + secret access key
Azure Blob Storage	azure	Connection string, account key, or SAS token

S3-compatible services like MinIO and DigitalOcean Spaces are also supported via a custom endpoint URL.

Setup

Configuring BYOBS follows a three-step workflow: create a configuration, validate the connection, then activate it.

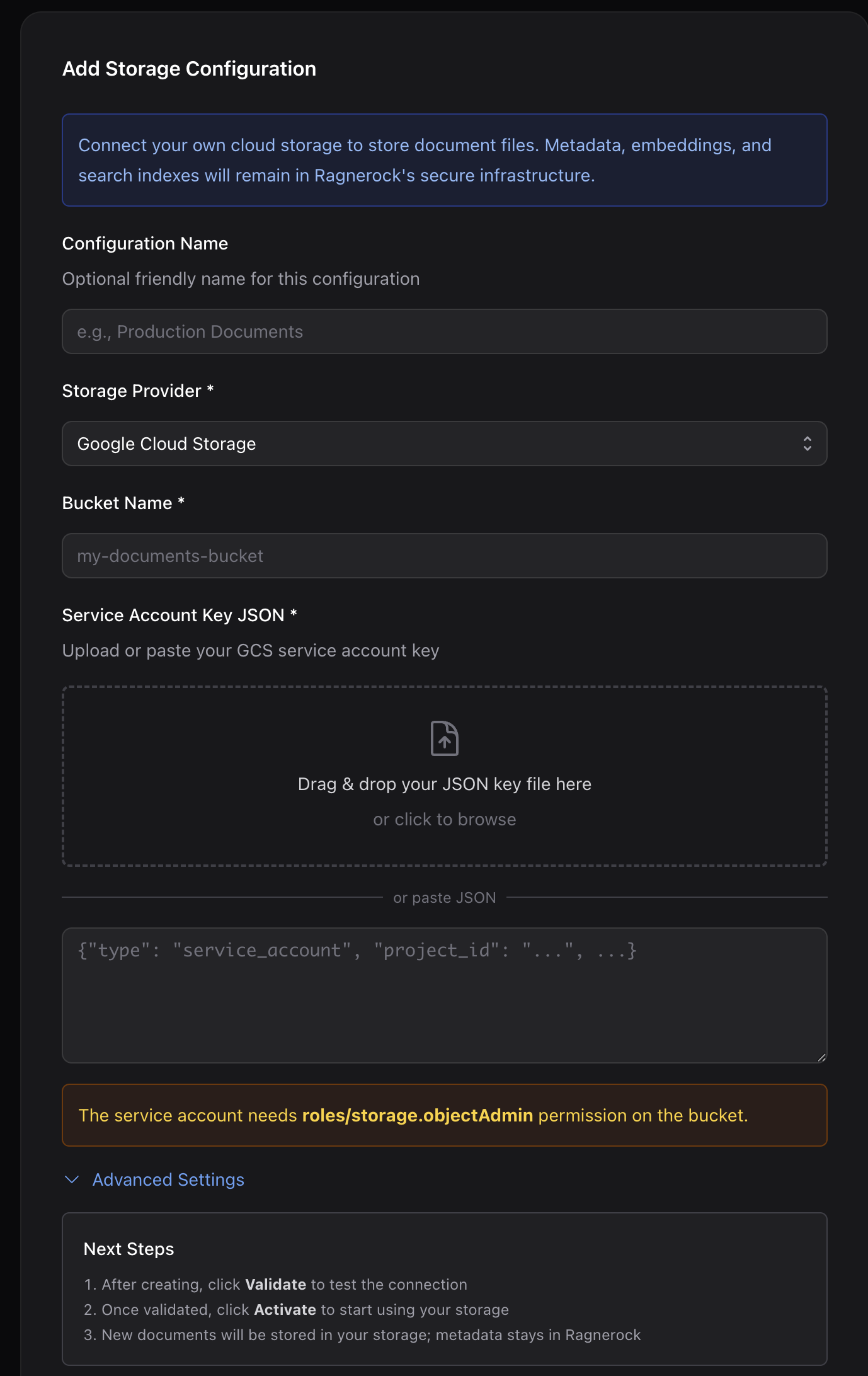

Navigate to Settings > Storage to access the storage configuration page. Click Add Storage to start the setup wizard.

1. Create a Configuration

Select GCS, S3, or Azure as the provider type, then enter your bucket name, credentials, and optional path prefix.

The configuration is saved in an inactive, unvalidated state. Your credentials are encrypted at rest using envelope encryption.

2. Validate the Connection

After saving, click Validate on the configuration card to test connectivity. Validation checks write, read, and delete operations against your bucket to confirm that the credentials and permissions are correct.

3. Activate the Configuration

Toggle the configuration to Active in the settings page. Once activated, all new document uploads across every project in your account are stored in your bucket. Only one configuration can be active at a time. Activating a new one automatically deactivates the previous one.

Provider Credentials

Before creating a configuration, ensure your cloud storage credentials have the required permissions.

Google Cloud Storage

Create a service account with the roles/storage.objectAdmin role on your bucket, then download its JSON key. Upload the JSON key file when creating the configuration.

Amazon S3

Create an IAM user or role with s3:PutObject, s3:GetObject, and s3:DeleteObject permissions on your bucket. Enter the access key ID and secret access key in the configuration form.

For S3-compatible services (MinIO, DigitalOcean Spaces), select S3 as the provider type and enter your service’s custom endpoint URL in the Endpoint field.

Azure Blob Storage

Azure supports three credential types. The storage container must already exist. Choose one of:

• Connection string: The full Azure Storage connection string
• Account key: The storage account key along with the account name
• SAS token: A shared access signature token along with the account name

Storage Paths

Ragnerock manages all file paths within your bucket automatically. You do not need to create any directory structure. Files are organized using the following pattern:

{path_prefix}{account_id}/projects/{project_id}/documents/{timestamp}_{filename}

Component	Example	Description
path_prefix	ragnerock/data/	Configurable per configuration (default: ragnerock/data/)
account_id	abc123def456	Your Ragnerock account ID
project_id	789ghi012jkl	The project the document belongs to
timestamp	20240115_143022	Upload timestamp (UTC)
filename	annual_report.pdf	Original filename

A full path looks like:

ragnerock/data/abc123def456/projects/789ghi012jkl/documents/20240115_143022_annual_report.pdf

You can customize the path prefix when creating a configuration to organize Ragnerock data within a shared bucket. For example, setting it to team-alpha/research/ places all files under that prefix.

Using with Bring Your Own Database

BYOBS and BYODB are independent features that control different parts of document storage:

Data	Controlled by	Location
Document files (PDFs, spreadsheets, etc.)	BYOBS	Your cloud storage bucket
Document metadata, chunks, and annotations	BYODB	Your PostgreSQL or BigQuery database

When both are active, document files live in your bucket and metadata lives in your database. Each feature can be enabled or disabled independently. Documents are only fully accessible when both the blob configuration and the database configuration that were active at upload time are currently active.

Managing Configurations

In the Storage settings page, all your configurations are listed with their provider type, bucket name, and status (active, inactive, or unvalidated). From this list, you can:

Operation	Description
Activate / Deactivate	Toggle to switch between active and inactive. Deactivating reverts new uploads to Ragnerock’s default storage.
Validate	Re-run connectivity tests after credential or permission changes
Update credentials	Edit credentials on an existing configuration. Requires re-validation and re-activation.
Health check	Test connectivity and view status and latency
Delete	Remove a configuration (must deactivate first). Soft delete preserves audit trail.

To rotate credentials, deactivate the configuration first, update the credentials, re-validate, then reactivate.

Important Notes

• No migration of existing documents. Enabling BYOBS only affects new uploads. Documents uploaded before activation remain in Ragnerock’s default storage and continue to be accessible.
• One active configuration per account. All projects within an account share the same active blob storage configuration.
• Each document tracks its storage location. When you switch configurations or deactivate BYOBS, previously uploaded documents still reference their original storage location and remain accessible as long as that storage is reachable.
• Credential security. Credentials are encrypted at rest using envelope encryption. Only a non-sensitive hint (e.g., gs://my-bucket (ragnerock@...)) is stored in plaintext for display purposes.
• Changes require re-validation. Updating the bucket name, path prefix, or credentials on a saved configuration marks it as unvalidated. You must re-validate before reactivating.
